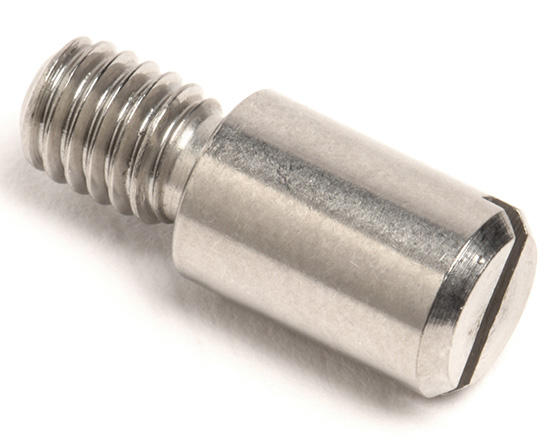

M4 X 12 SLOTTED SHOULDER SCREW DIN 927 A1 STAINLESS STEEL
Further Information
| Diameter (d) | Pitch | dk | b | n (nom) | t (min) |
|---|---|---|---|---|---|
| M3 | 0.50 | 4.00-3.97 | 4.80-4.50 | 0.50 | 0.80 |
| M4 | 0.70 | 5.50-5.47 | 6.30-6.00 | 0.60 | 1.12 |
| M5 | 0.80 | 6.50-6.46 | 7.36-7.00 | 0.80 | 1.28 |
| M6 | 1.00 | 8.00-7.96 | 8.36-8.00 | 1.00 | 1.60 |
