Standard Range: Metric M1.0 > M52, Inch Oun > 2"
-
E-CATALOGUE

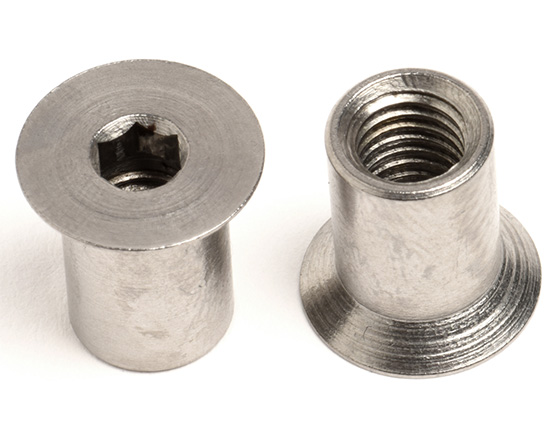

M8 X 16 SOCKET COUNTERSUNK SLEEVE NUT (11mm Diameter) A1 STAINLESS STEEL
£153.15 (exc VAT) per 100
Part No. A906208
£153.15 (exc VAT) per 100
| Quantity Breaks | Price per 100 |
|---|---|
| 100 + | £153.15 |
| 200 + | £145.49 |
| 400 + | £138.22 |
| 1000 + | £131.33 |
| 2000 + | £123.21 |
Further Information
| Diameter (d) | Pitch | L | d2 | dk | k | Drive | L2 |
|---|---|---|---|---|---|---|---|
| M3 | 0.50 | 7 | 4.5 | 6.0 | 0.8 | 2mm | 4.0 |
| M4 | 0.70 | 12 | 5.0 | 8.0 | 1.8 | 2.5mm | 7.0 |
| M5 | 0.80 | 15 | 6.5 | 10 | 2.1 | 3mm | 9.0 |
| M6 | 1.00 | 16 | 8.0 | 12 | 2.3 | 4mm | 9.0 |
| M8 | 1.25 | 16 | 11 | 16 | 2.8 | 5mm | 9.0 |
| M10 | 1.50 | 20 | 14 | 20 | 3.3 | 6mm | 12 |
| M12 | 1.75 | 20 | 16 | 24 | 4.4 | 8mm | 12 |
| M16 | 2.00 | 25 | 22 | 30 | 5.4 | 10mm | 15 |
