Standard Range: Metric M1.0 > M52, Inch Oun > 2"
-
E-CATALOGUE

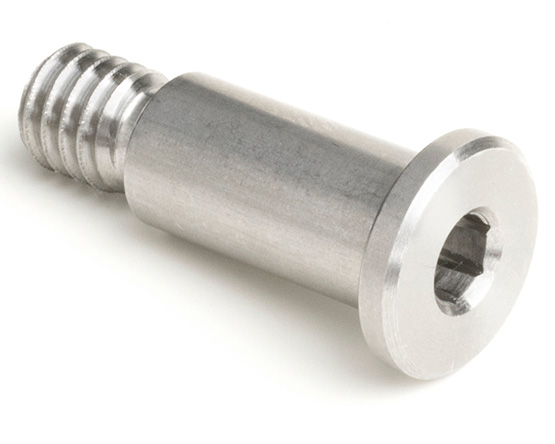

1/4 (10-32 UNF) X 3/8 PRECISION LOW HEAD SOCKET SHOULDER SCREW A4 (316L) STAINLESS STEEL
£1963.00 (exc VAT) per 100
Part No. USS1410320375LA4
£1963.00 (exc VAT) per 100
| Quantity Breaks | Price per 100 |
|---|---|
| 1 | £1963.00 |
| 2 + | £1864.85 |
| 4 + | £1771.61 |
| 10 + | £1683.27 |
| 20 + | £1579.23 |
Further Information
| ds (nom) | ds | d | s | dk | k | b |
|---|---|---|---|---|---|---|
| 3/32" | 0.093-0.092 | 2-56 | 5/64" | 3/16" | 1/16" | 1/8" |
| 1/8" | 0.125-0.124 | 4-40 | 5/64" | 1/4" | 3/32" | 5/32" |
| 5/32" | 0.156-0.155 | 6-32 | 3/32" | 9/32" | 5/64" | 3/16" |
| 3/16" | 0.187-0.186 | 8-32 | 3/32" | 5/16" | 7/64" | 3/16" |
| 1/4" | 0.250-0.249 | 10-24 | 1/8" | 3/8" | 1/8" | 3/8" |
| 1/4" | 0.250-0.249 | 10-32 | 1/8" | 3/8" | 1/8" | 1/4" |
| 5/16" | 0.312-0.311 | 1/4-20 | 5/32" | 7/16" | 1/8" | 7/16" |
| 3/8" | 0.375-0.374 | 1/4-20 | 3/16" | 9/16" | 3/32" | 7/16" |
| 3/8" | 0.375-0.374 | 5/16-18 | 3/16" | 9/16" | 3/32" | 1/2" |
| 1/2" | 0.500-0.498 | 3/8-16 | 1/4" | 3/4" | 3/32" | 5/8" |
