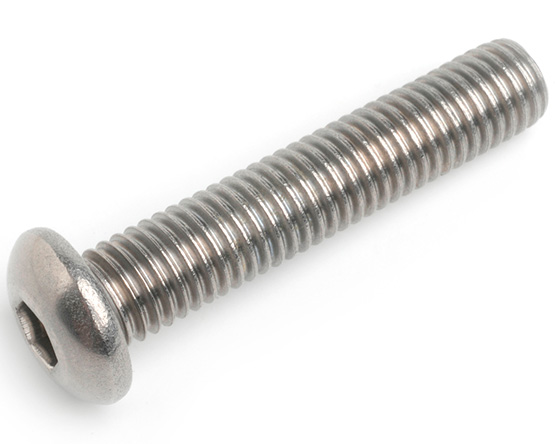

1/4-20 UNC X 1/2 SOCKET BUTTON ASME B18.3 A2 STAINLESS STEEL

Name: 1/4-20 UNC X 1/2 SOCKET BUTTON ASME B18.3 A2 STAINLESS STEEL
SKU: U738014200500
Price: 22.02 GBP
Availability: InStock

£22.02 (exc VAT) per 100

Part No. U738014200500

£22.02 (exc VAT) per 100

This product must be ordered in multiples of 25, quantities will be rounded up as you add them.

SHOP FOR MORE SOCKET BUTTON SCREWS

Thread	T.P.I UNC	T.P.I UNF	a (max)	h (max)	t (min)	j
0	*	80	0.114	0.032	0.020	0.035
1	64	72	0.139	0.039	0.028	0.050
2	56	64	0.164	0.046	0.028	0.050
3	48	56	0.188	0.052	0.035	1/16
4	40	48	0.213	0.059	0.035	1/16
5	40	44	0.238	0.066	0.044	5/64
6	32	40	0.262	0.073	0.044	5/64
8	32	36	0.312	0.087	0.052	3/32
10	24	32	0.361	0.101	0.070	1/8
1/4	20	28	0.437	0.132	0.087	5/32
5/16	18	24	0.547	0.166	0.105	3/16
3/8	16	24	0.656	0.199	0.122	7/32
1/2	13	20	0.875	0.265	0.175	5/16
5/8	11	18	1.00	0.331	0.210	3/8
