Standard Range: Metric M1.0 > M52, Inch Oun > 2"
-
E-CATALOGUE

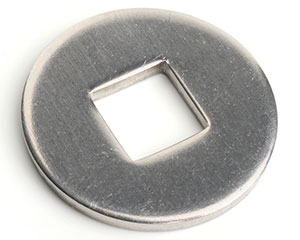

M8 WOOD CONSTRUCTION WASHER (SQUARE HOLE) DIN 440V A4 STAINLESS STEEL
£51.39 (exc VAT) per 100
Part No. A440V08A4
£51.39 (exc VAT) per 100
| Quantity Breaks | Price per 100 |
|---|---|
| 100 + | £51.39 |
| 200 + | £48.82 |
| 400 + | £46.38 |
| 1000 + | £44.07 |
| 2000 + | £41.34 |
Further Information
| Diameter (d) | a | d2 | h |
|---|---|---|---|
| M5 | 5.80-5.50 | 18.00-16.90 | 2.3-1.7 |
| M6 | 6.96-6.60 | 22.00-20.70 | 2.3-1.7 |
| M8 | 9.36-9.00 | 28.00-26.70 | 3.6-2.4 |
| M10 | 11.43-11.00 | 34.00-32.40 | 3.6-2.4 |
| M12 | 14.43-14.00 | 44.00-42.40 | 4.6-3.4 |
| M16 | 18.70-18.00 | 56.00-54.10 | 6.0-4.0 |
| M20 | 22.84-22.00 | 72.00-70.10 | 7.0-5.0 |
| M22 | 24.84-24.00 | 80.00-78.10 | 7.0-5.0 |
| M24 | 26.84-26.00 | 85.00-82.80 | 7.0-5.0 |
