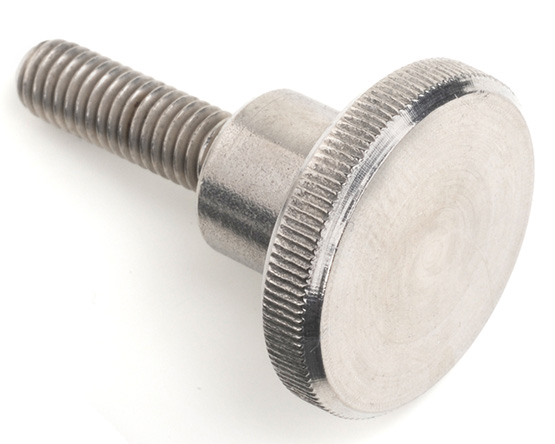

M5 X 16 KNURLED THUMB SCREW HIGH TYPE DIN 464 A1 STAINLESS STEEL
£265.49 (exc VAT) per 100
Part No. A4640516
£265.49 (exc VAT) per 100
| Quantity Breaks | Price per 100 |
|---|---|
| 25 + | £265.49 |
| 50 + | £252.22 |
| 100 + | £239.60 |
| 250 + | £227.66 |
| 500 + | £213.59 |
This product must be ordered in multiples of 25, quantities will be rounded up as you add them.
Further Information
| Diameter (d) | Pitch | dk | ds | h | k | max thread |
|---|---|---|---|---|---|---|
| M3 | 0.50 | 12.35-11.65 | 6.00-5.70 | 7.5 | 2.5 | 9 |
| M4 | 0.70 | 16.35-15.65 | 8.00-7.64 | 9.5 | 3.5 | 12 |
| M5 | 0.80 | 20.42-19.58 | 10.00-9.64 | 11.5 | 4.0 | 15 |
| M6 | 1.00 | 24.42-23.59 | 12.00-11.57 | 15.0 | 5.0 | 18 |
| M8 | 1.25 | 30.42-29.58 | 16.00-15.57 | 18.0 | 6.0 | 24 |
| M10 | 1.50 | 36.50-35.50 | 20.00-19.48 | 23.0 | 8.0 | 30 |
