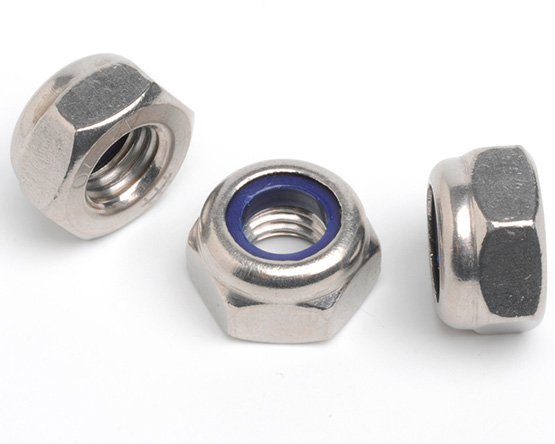

M2 NYLON INSERT NUT DIN 985 A2 STAINLESS STEEL
£110.57 (exc VAT) per 100
Part No. A98502
£110.57 (exc VAT) per 100
| Quantity Breaks | Price per 100 |
|---|---|
| 25 + | £110.57 |
| 100 + | £105.04 |
| 200 + | £99.79 |
| 500 + | £94.81 |
| 1000 + | £88.95 |
This product must be ordered in multiples of 25, quantities will be rounded up as you add them.
Further Information
| Diameter (d) | Pitch | s | m (min) | h |
|---|---|---|---|---|
| M2 | 0.40 | 4.00-3.82 | 1.60 | 3.00-2.60 |
| M2.5 | 0.45 | 5.00-4.82 | 2.00 | 3.60-3.30 |
| M3 | 0.50 | 5.50-5.32 | 2.40 | 4.00-3.70 |
| M3.5 | 0.60 | 6.00-5.78 | 2.90 | 4.50-4.20 |
| M4 | 0.70 | 7.00-6.78 | 2.90 | 5.00-4.70 |
| M5 | 0.80 | 8.00-7.78 | 3.20 | 5.00-4.70 |
| M6 | 1.00 | 10.00-9.78 | 4.00 | 6.00-5.70 |
| M7 | 1.00 | 11.00-10.78 | 4.70 | 7.50-7.14 |
| M8 | 1.25 | 13.00-12.73 | 5.50 | 8.00-7.64 |
| M10 | 1.50 | 17.00-16.73 | 6.50 | 10.00-9.64 |
| M12 | 1.75 | 19.00-18.67 | 8.00 | 12.00-11.57 |
| M14 | 2.00 | 22.00-21.67 | 9.50 | 14.00-13.30 |
| M16 | 2.00 | 24.00-23.67 | 10.50 | 16.00-15.30 |
| M18 | 2.50 | 27.00-26.16 | 13.00 | 18.50-17.66 |
| M20 | 2.50 | 30.00-29.16 | 14.00 | 20.00-18.70 |
| M22 | 2.50 | 32.00-31.00 | 15.00 | 22.00-20.70 |
| M24 | 3.00 | 36.00-35.00 | 15.00 | 24.00-22.70 |
| M27 | 3.00 | 41.00-40.00 | 17.00 | 27.00-25.70 |
| M30 | 3.50 | 46.00-45.00 | 19.00 | 30.00-28.70 |
| M33 | 3.50 | 50.00-49.00 | 22.00 | 33.00-31.40 |
| M36 | 4.00 | 55.00-53.80 | 25.00 | 36.00-34.40 |
