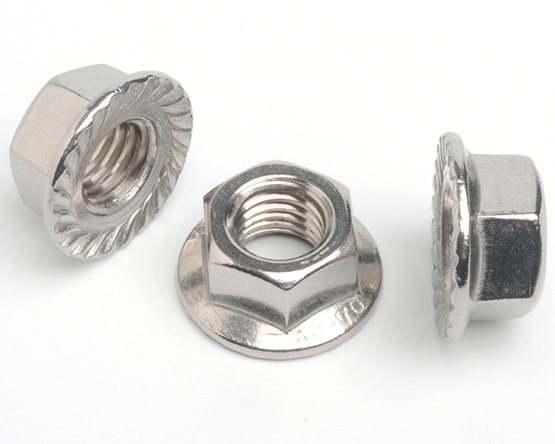

5/16-18 UNC HEXAGON SERRATED FLANGE NUT ASME B18.16.4 A4 STAINLESS STEEL
£40.25 (exc VAT) per 100
Part No. U692351618A4
£40.25 (exc VAT) per 100
| Quantity Breaks | Price per 100 |
|---|---|
| 50 + | £40.25 |
| 100 + | £38.24 |
| 200 + | £36.33 |
| 500 + | £34.51 |
| 1000 + | £32.38 |
Further Information
| Thread | T.P.I UNC | T.P.I UNF | f (max) | b (max) | j (min) | h (max) |
|---|---|---|---|---|---|---|
| 6 | 32 | 40 | 0.312 | 0.422 | 0.10 | 0.171 |
| 8 | 32 | 36 | 0.344 | 0.469 | 0.13 | 0.203 |
| 10 | 24 | 32 | 0.375 | 0.500 | 0.13 | 0.219 |
| 12 | 24 | 28 | 0.438 | 0.594 | 0.14 | 0.236 |
| 1/4 | 20 | 28 | 0.438 | 0.594 | 0.14 | 0.236 |
| 5/16 | 18 | 24 | 0.500 | 0.680 | 0.17 | 0.283 |
| 3/8 | 16 | 24 | 0.562 | 0.750 | 0.23 | 0.347 |
| 7/16 | 14 | 20 | 0.688 | 0.937 | 0.26 | 0.395 |
| 1/2 | 13 | 20 | 0.750 | 1.031 | 0.31 | 0.458 |
