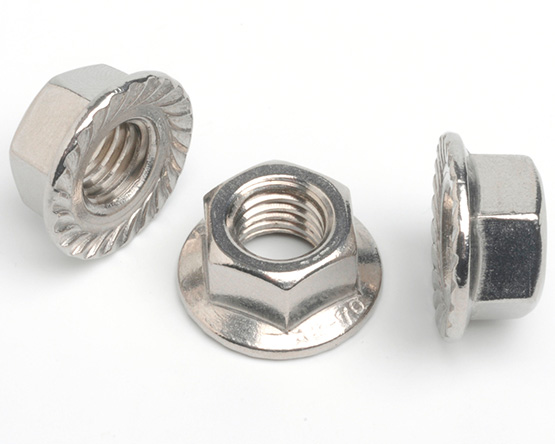

M5 HEXAGON SERRATED FLANGE NUT DIN 6923 A2 STAINLESS STEEL
£7.71 (exc VAT) per 100
Part No. A692305
£7.71 (exc VAT) per 100
| Quantity Breaks | Price per 100 |
|---|---|
| 100 + | £7.71 |
| 500 + | £7.32 |
| 1000 + | £6.96 |
| 2500 + | £6.61 |
| 5000 + | £6.20 |
This product must be ordered in multiples of 100, quantities will be rounded up as you add them.
Further Information
| Diameter (d) | Pitch | s | dc (max) | m1 | m |
|---|---|---|---|---|---|
| M3 | 0.50 | 5.50-5.32 | 8.00 | 1.70 | 4.00-3.70 |
| M4 | 0.70 | 7.00-6.78 | 10.00 | 1.90 | 4.50-4.20 |
| M5 | 0.80 | 8.00-7.78 | 11.80 | 2.20 | 5.00-4.70 |
| M6 | 1.00 | 10.00-9.78 | 14.20 | 3.10 | 6.00-5.70 |
| M8 | 1.25 | 13.00-12.73 | 17.90 | 4.50 | 8.00-7.60 |
| M10 | 1.50 | 15.00-14.73 | 21.80 | 5.50 | 10.00-9.60 |
| M12 | 1.75 | 18.00-17.73 | 26.00 | 6.70 | 12.00-11.60 |
| M16 | 2.00 | 24.00-23.67 | 34.50 | 9.00 | 16.00-15.30 |
