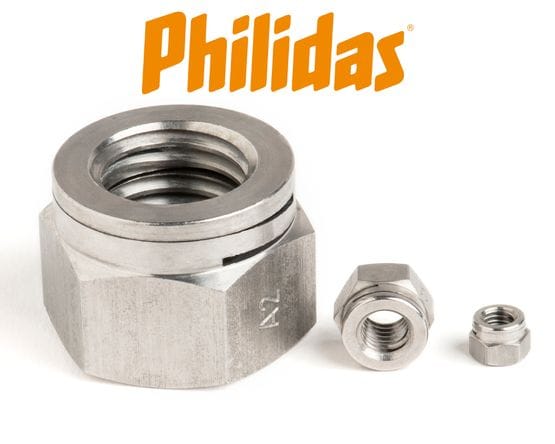

M16 PHILIDAS TURRET NUT (16MCP/4S00) A4-80 STAINLESS STEEL
£1300.74 (exc VAT) per 100
Part No. APHILT16A4
£1300.74 (exc VAT) per 100
| Quantity Breaks | Price per 100 |
|---|---|
| 50 + | £1300.74 |
| 100 + | £1235.70 |
| 200 + | £1173.92 |
| 500 + | £1115.38 |
| 1000 + | £1046.45 |
Further Information
| Diameter (d) | Pitch | s | e (min) | m (nom) | b (nom) | Applied Torque (Nm) | Proof Load (N) | Clamp Load (N) |
|---|---|---|---|---|---|---|---|---|
| M3 | 0.50 | 5.50-5.32 | 6.01 | 2.5 | 4.8 | * | * | * |
| M4 | 0.70 | 7.00-6.78 | 7.66 | 3.3 | 5.6 | 3.20 | * | * |
| M5 | 0.80 | 8.00-7.78 | 8.79 | 3.9 | 6.8 | 5.70 | 12140 | 6584 |
| M6 | 1.00 | 10.00-9.78 | 11.05 | 5.0 | 8.5 | 9.60 | 17200 | 9280 |
| M8 | 1.25 | 13.00-12.73 | 14.38 | 6.0 | 10.5 | 23.50 | 31800 | 16960 |
| M10 | 1.50 | 17.00-16.73 | 18.90 | 7.6 | 13 | 46.80 | 50500 | 26960 |
| M12 | 1.75 | 19.00-18.67 | 21.10 | 8.5 | 15 | 88 | 74200 | 39120 |
| M16 | 2.00 | 24.00-23.67 | 26.75 | 12.0 | 19.5 | 206 | 138200 | 72800 |
| M20 | 2.50 | 30.00-29.16 | 32.95 | 15.5 | 24 | 402 | 225400 | 117600 |
| M24 | 3.00 | 36.00-35.00 | 39.55 | 19.0 | 29 | 720 | 324800 | 169600 |
