Standard Range: Metric M1.0 > M52, Inch Oun > 2"
-
E-CATALOGUE

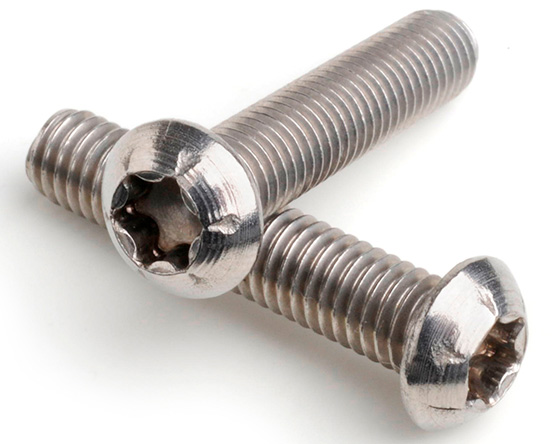

M4 X 8 TX20 BUTTON ISO 7380-1 A2 STAINLESS STEEL
£5.03 (exc VAT) per 100
Part No. A73800408TX
£5.03 (exc VAT) per 100
| Quantity Breaks | Price per 100 |
|---|---|
| 500 + | £5.03 |
| 1000 + | £4.78 |
| 2000 + | £4.54 |
| 5000 + | £4.31 |
| 10000 + | £4.05 |
This product must be ordered in multiples of 500, quantities will be rounded up as you add them.
Further Information
| Diameter (d) | Pitch | T-Drive | dk | k | t (min) |
|---|---|---|---|---|---|
| M2 | 0.40 | 6 | 3.50-3.30 | 1.30-1.10 | 0.80 |
| M2.5 | 0.45 | 8 | 4.70-4.50 | 1.50-1.36 | 1.00 |
| M3 | 0.50 | 10 | 5.70-5.40 | 1.65-1.40 | 1.01 |
| M4 | 0.70 | 20 | 7.60-7.24 | 2.20-1.95 | 1.42 |
| M5 | 0.80 | 25 | 9.50-9.14 | 2.75-2.50 | 1.65 |
| M6 | 1.00 | 30 | 10.50-10.07 | 3.30-3.00 | 2.02 |
| M8 | 1.25 | 40 | 14.00-13.57 | 4.40-4.10 | 2.80 |
| M10 | 1.50 | 50 | 17.50-17.07 | 5.50-5.20 | 3.62 |
| M12 | 1.75 | 55 | 21.00-20.46 | 6.60-6.24 | 4.16 |
