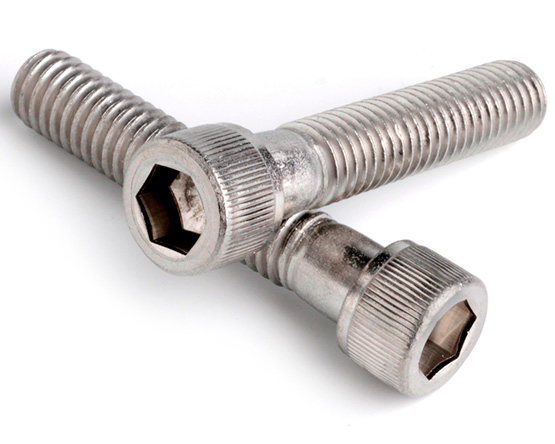

2-56 UNC X 5/32 SOCKET CAP SCREW ASME B18.3 A2 STAINLESS STEEL

Name: 2-56 UNC X 5/32 SOCKET CAP SCREW ASME B18.3 A2 STAINLESS STEEL
SKU: U9122560156
Price: 6.45 GBP
Availability: InStock

£6.45 (exc VAT) per 100

Part No. U9122560156

£6.45 (exc VAT) per 100

This product must be ordered in multiples of 500, quantities will be rounded up as you add them.

SHOP FOR MORE SOCKET CAP SCREWS

Thread	T.P.I UNC	T.P.I UNF	a (max)	h (max)	t (min)	j	LT
0	*	80	0.096	0.060	0.025	0.050	0.50-0.99
1	64	72	0.118	0.073	0.031	1/16	0.62-0.99
2	56	64	0.140	0.086	0.038	5/64	0.62-0.99
3	48	56	0.161	0.099	0.044	5/64	0.62-0.99
4	40	48	0.183	0.112	0.051	3/32	0.75-0.99
5	40	44	0.205	0.125	0.057	3/32	0.75-1.00
6	32	40	0.226	0.138	0.064	7/64	0.75-1.05
8	32	36	0.270	0.164	0.077	9/64	0.88-1.19
10	24	32	0.312	0.190	0.090	5/32	0.88-1.27
12	24	28	0.343	0.216	0.090	5/32	0.88-1.27
1/4	20	28	0.375	0.250	0.120	3/16	1.00-1.50
5/16	18	24	0.469	0.312	0.151	1/4	1.12-1.71
3/8	16	24	0.562	0.375	0.182	5/16	1.25-1.94
7/16	14	20	0.656	0.438	0.213	3/8	1.38-2.17
1/2	13	20	0.750	0.500	0.245	3/8	1.50-2.38
9/16	12	18	*	*	*	*	*
5/8	11	18	0.938	0.625	0.307	1/2	1.75-2.82
3/4	10	16	1.125	0.750	0.370	5/8	2.00-3.25
7/8	9	14	1.312	0.875	0.432	3/4	2.25-3.69
1"	8	12	1.500	1.000	0.495	3/4	2.50-4.12
