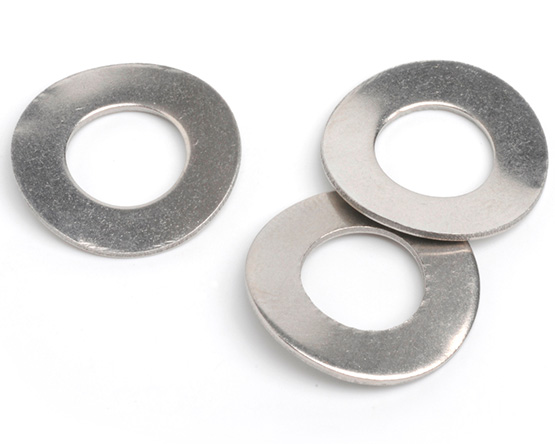

M8 DIN 137B WAVE WASHER A4 STAINLESS STEEL
£10.04 (exc VAT) per 100
Part No. A137B08A4
£10.04 (exc VAT) per 100
| Quantity Breaks | Price per 100 |
|---|---|
| 200 + | £10.04 |
| 400 + | £9.54 |
| 800 + | £9.06 |
| 2000 + | £8.61 |
| 4000 + | £8.08 |
This product must be ordered in multiples of 200, quantities will be rounded up as you add them.
Further Information
| Diameter (d) | d1 (h14) | d2 (js16) | s | h |
|---|---|---|---|---|
| M3 | 3.2 | 8.0 | 0.5 | 1.60-0.80 |
| M3.5 | 3.7 | 8.0 | 0.5 | 1.80-0.90 |
| M4 | 4.3 | 9.0 | 0.5 | 2.00-1.00 |
| M5 | 5.3 | 11 | 0.5 | 2.20-1.10 |
| M6 | 6.4 | 12 | 0.5 | 2.60-1.30 |
| M7 | 7.4 | 14 | 0.8 | 3.00-1.50 |
| M8 | 8.4 | 15 | 0.8 | 3.00-1.50 |
| M10 | 10.5 | 21 | 1.0 | 4.20-2.10 |
| M12 | 13 | 24 | 1.2 | 5.00-2.50 |
| M14 | 15 | 28 | 1.6 | 6.00-3.00 |
| M16 | 17 | 30 | 1.6 | 6.40-3.20 |
| M18 | 19 | 34 | 1.6 | 6.60-3.30 |
| M20 | 21 | 36 | 1.6 | 7.40-3.70 |
| M22 | 23 | 40 | 1.8 | 7.80-3.90 |
| M24 | 25 | 44 | 1.8 | 8.20-4.10 |
| M27 | 28 | 50 | 2.0 | 9.40-4.70 |
